Power Transformer

Substation / Power Transformer

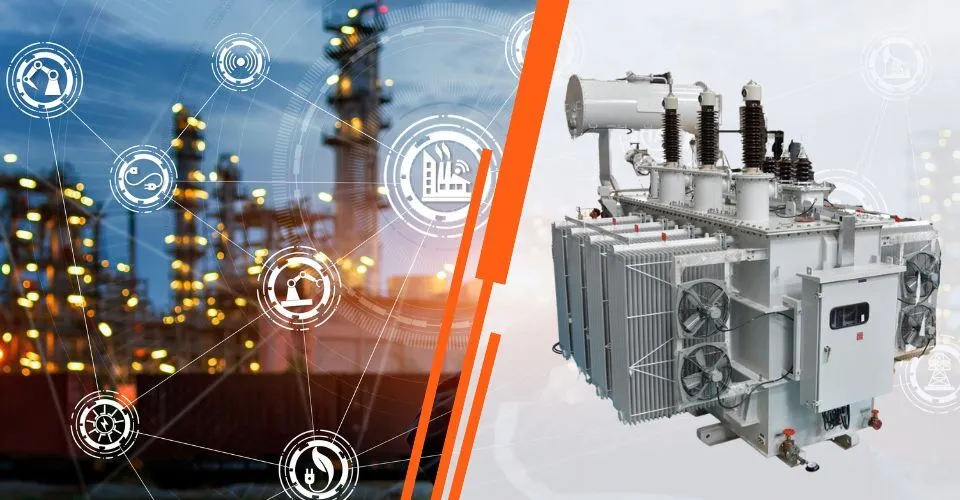

The substation / power transformer is a critical component of a substation. Our transformer is designed, manufactured, and tested to meet applicable specifications and industry standards, with quality and reliability. We manufacture both on-load & off-circuit tap switch transformers. This transformer is generally used for stepping up and stepping down voltage in the transmission network. The transformer tank is suitably designed to allow safe lifting and transportation, effectively sealed for any oil leakage. Transformers are designed & manufactured with due care on health & safety aspects in accordance with applicable standards, including IEEE, CSA, ANSI, IEC, and NEMA.

Data Center Transformer Custom Power Transformer

Design Capabilities

  • Installation: Outdoor
  • Rating: Up to 150 MVA
  • Voltage: Up to 230 kV or any specific
  • Vector Group: Dyn5, Dyn11, YNyno, any specific
  • Type of Cooling: ΟΝΑΝ, ΟΝΑN / ONAF, KNΑΝ, ΚΝΑΝ / KNAF
  • Phase/Frequency: 3 Phase, 50/60 Hz
  • Insulating Fluid: Natural Ester Oil, Synthetic Ester Oil, Mineral Oil as per IEC60296, ASTM D3487
  • Paint: Epoxy, Polyurethane or customer specific
  • Winding Material: Aluminum / Copper
  • Tap Changer: Off Circuit or On Load Tap Changer
  • Applicable Standards: IEEE, CSA, NEMA, DOE, ANSI, IEC 60076

Applications

  • Solar & Wind applications
  • Large Industries
  • Mining stations & power plants
  • Onshore & Offshore platforms
  • Receiving stations
  • Data centers

Special Features

  • Highest dielectric insulation property to withstand lightning impulse
  • Step-lap-designed CRGO laminations for lower losses & excitation current
  • Pre-heating of coils under vacuum to achieve desired compression height
  • Perma wood clamping rings for uniform compression of primary & secondary winding
  • Adequate ducts between layers, coils, and discs for max oil flow & reduced hot spot temperature

Standard Features

  • Mild steel transformer tank & cabinets as applicable
  • Rating & Diagram Plate
  • On-Load Tap Changer / Off-Circuit Tap Changer
  • With/without conservator as per customer specification
  • HV Terminal bushing
  • LV Terminal bushing
  • Radiators
  • Marshalling box with control wiring
  • Inspection cover
  • Filter & sampling valves
  • Buchholz relay & other protection equipment as required

Optional Features

  • HV and LV Cable box / Bus duct / ATC
  • Winding temperature indicator with WTI CT
  • Surge arrestor / NGR
  • Bi-directional rollers
  • DGPT relay for corrugated tank
  • Rapid pressure rise relay
  • Provision for NIFPS
  • Pulling lugs & jacking pads
  • Isolating valves for radiator
  • Marshalling box for all wirings
  • Magnetic oil gauge with A/T contacts
  • Corrugated / Conventional radiators
